Parts list

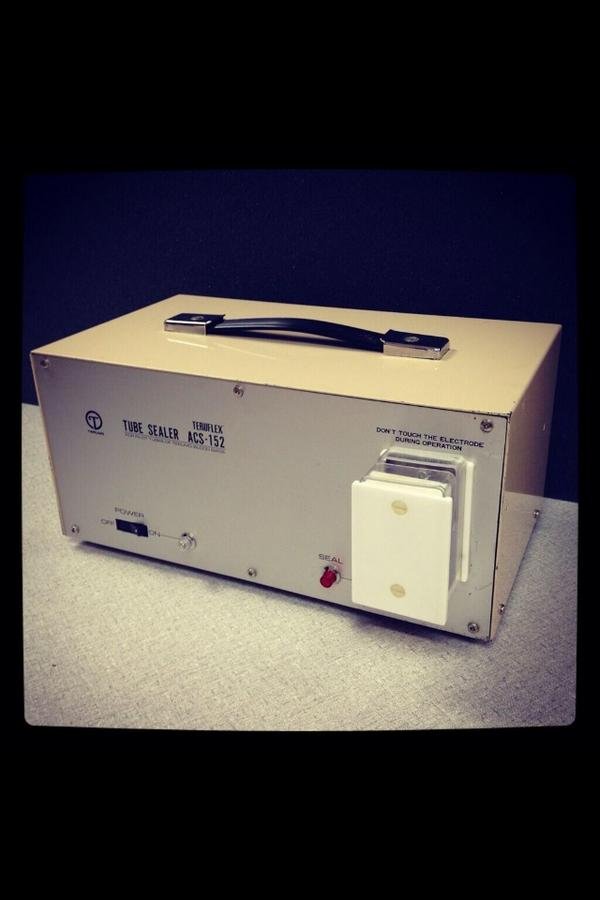

Terumo ACS-152 Tube Sealer – Parts List
Bracketed numbers refer to the item numbers on the exploded view diagram. Need a part or a repair? Call 856-467-8009.
| Item | Description |
|---|---|
| S00ST100011 | SPLASH SHIELD |
| S00TE109341 | NUT FOR MICROSWITCH LOCK SCREW |
| S00TE11A021 | PLUNGER |
| S00TE12A131 | REGULATION NOSE [41] |
| S00TE12A281 | REAR PANEL ATTACHING PLATE [13] |
| S00TE12A311 | PLUNGER ATTACHING PLATE [42] |
| S00TE12A321 | GUIDE PLATE [57] |
| S00TE145RF1 | HANDLE [3] |
| S00TE1692B1 | RUBBER CUSHION LEG [10] |
| S00TE179801 | WASHER, LOCK FOR AT. PLATE SET BOLT |
| S00TE1A0111 | CABINET |
| S00TE1A0191 | SCREW,MICROSWITCH LOCK (M2x10) [49] |
| S00TE1A0271 | CHASSIS [8] |
| S00TE1A0421 | BOTTOM COVER [9] |
| S00TE1A0521 | FRONT PANEL, TERUMO ACS-152 [5] |
| S00TE1A0631 | REAR PANEL [12] |
| S00TE1A0821 | PLUNGER STOPPER [51] |
| S00TE1A0921 | ANODE ATTACHING PLATE (METAL) [28] |
| S00TE1BB011 | MICROSWITCH (START) [29] |
| S00TE1BS011 | POWER CABLE [PC1] |
| S00TE1BS021 | FUSE, 3 AMP [62] |
| S00TE1BS031 | LAMP [PL1,PL2] |
| S00TE1BS041 | SWITCH, POWER [54] (Obsolete) |
| S00TE1BS042 | SWITCH, POWER [54] (Rqrs panel mod) |
| S00TE1BS061 | MICROSWITCH (SAFETY) [48] |
| S00TE1BS081 | RELAY #1 [RL1] |
| S00TE1BS091 | SOCKET FOR RELAY #1 |
| S00TE1BS101 | ANODE CAP |
| S00TE1BS121 | DC SOLENOID [34,35,36] |
| S00TE1BS131 | VACUUM TUBE [T1] |
| S00TE1BS141 | SOCKET FOR VACUUM TUBE |
| S00TE1BS151 | HV CABLE [27] |
| S00TE1BS161 | CHOKE, [CH1] |
| S00TE1BS171 | MICA CAP. (.002uF 2KV) [C8-C10] |
| S00TE1BS211 | SPRING [47] |
| S00TE1BS231 | DIODE V11M [D1~D4] |
| S00TE1BS251 | COIL [L1] |
| S00TE1BS281 | LAMP ASSEMBLY, SEAL [59] |
| S00TE1BS282 | LAMP COVER, SEAL |
| S00TE1BS291 | LAMP ASSEMBLY, POWER [7] |
| S00TE1BS292 | LAMP COVER, POWER |
| S00TE1BS301 | GROUND WIRE NETTING [46] |
| S00TE1BS311 | CASELOCK THUMBSCREW, WHITE [21] |
| S00TE1BS321 | SCREW,CASE SLOT PLASTIC(M4x10) [15] |
| S00TE1BS331 | STAINLESS STEEL BALL [33] |
| S00TE1BS341 | SCREW (FOR BAG SUPPORT PLATE) |
| S00TE1BS351 | VINYL COVER |
| S00TE1BS361 | BAG SUPPORT |
| S00TE1BS371 | SEALER CASE PLATE [14,20,32] |
| S00TE1BS381 | FUSE HOLDER [62] |
| S00TE1S0711 | MICROSWITCH (CLEARANCE) [38] |
| S00TE1S0821 | RELAY #2 [RL2] |
| S00TE1S0921 | SOCKET FOR RELAY #2 |
| S00TE1S1911 | TRANSFORMER [PT1] |
| S00TE1S2212 | SEALER COVER [31] |
| S00TE1S2321 | DIODE V03E [D5~D14] |
| S00TE1S2611 | ANODE, FIXED [22] |
| S00TE1S2711 | CATHODE, MOVABLE [23] |
| S00TE1S37B1 | MIDDLE ANODE PLATE [18] |
| S00TE1S3911 | CONDENSOR (33uF 500V CAP.) [C1,C2] |
| S00TE1S4011 | CONDENSOR (22uF 250V CAP.) [C3] |
| S00TE1S4012 | ELECTRO CAP. (2200uF 63V) [C6] |
| S00TE1STI11 | SCREW, ADJUSTING HEX [17] |
| S00TE1STI12 | SCREW, AC INLET LOCK [61] |
| S00TE1STI13 | RESISTOR,METAL OX (510 OHM 2W)[R10] |
| S00TE1STI181 | SCREW, ANODE LOCK [11,16] |
| S00TE1STI21 | SCREW, CATHODE LOCK [24] |
| S00TE1STI22 | SCREW, PLUNGER LOCK [45] |
| S00TE1STI31 | SCREW, HV CABLE LOCK [26] |
| S00TE1STI32 | SPACER [56] |
| S00TE1STI33 | SPACER [53] |
| S00TE1STI41 | SCREW, PANEL LOCK (M3xL6) [2,6] |
| S00TE1STI42 | RESISTOR METAL OX (22K OHM 2W)[R8-9] |
| S00TE1STI43 | RESISTOR, SOLID (51 OHM,1W) [R5-R7] |
| S00TE1STI51 | SCREW, MICROSWITCH LOCK [30] |
| S00TE1STI52 | ELECTRO CAP. (1000uF 35V)[C5] |
| S00TE1STI53 | RESISTOR, SOLID (510K,1W) [R11,R1-R |
| S00TE1STI61 | AT PLATE/SOLE SET BOLT [19,25] |
| S00TE1STI62 | ELECTRO CAP. (100uF 250V)[C4] |
| S00TE1STI63 | SCREW, SWITCH LOCK [52] |
| S00TE1STI71 | SCREW, ADJUSTING (M4x25) [44] |
| S00TE1STI72 | ELECTRO CAP. (470uF 35V) [C7] |
| S00TE1STI73 | RESISTOR, SOLID (1K 1/2W) [R12] |
| S00TE1STI81 | SCREW, ANODE/LEG LOCK [11,16] |
| S00TE1STI82 | MICA CAP. (.001uF 500V) [C11-C14] |
| S00TE1STI91 | SCREW, HANDLE LOCK [4] |
| S00TE1STI92 | SCREW, TERMINAL STRIP, M3X30(45) |
| S00TE1XX141 | AC INLET [60/CN1] |
